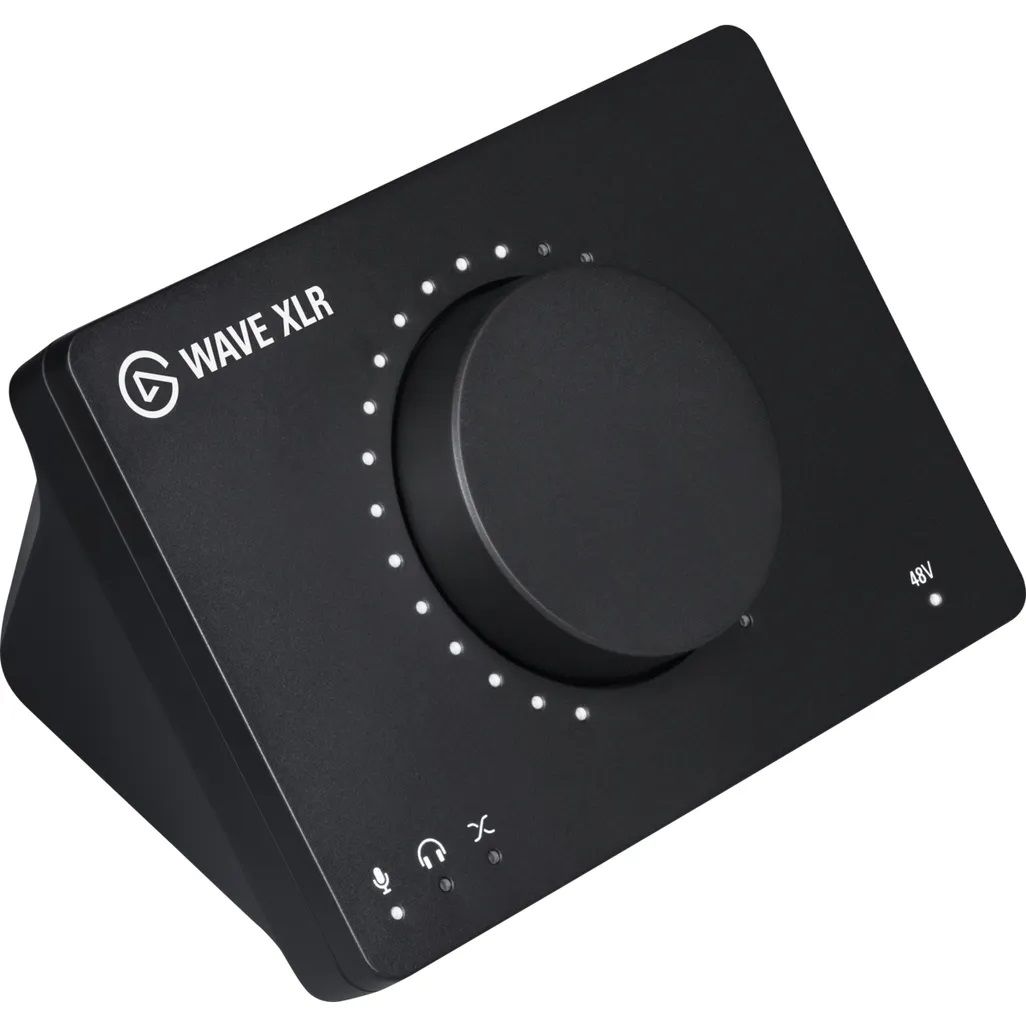

Elgato Wave XLR 10MAG9901

BRING YOUR MIC
You love your XLR microphone. You’ll love it even more with Wave XLR, a compact USB interface that gives your mic superpowers.

Spectifications
FREQUENCY RESPONSE
20 Hz – 20 kHz

DYNAMIC RANGE
100 dB (120 dB Clipguard engaged)

EQUIVALENT INPUT NOISE (EIN)
-130 dBV @ 60 dB gain

GAIN RANGE
0 – 75 dB

PHANTOM POWER
48 VDC, 7mA

MAXIMUM INPUT LEVEL
10 V @ 0 dB gain (Clipguard engaged)

MAXIMUM OUTPUT LEVEL
77 mW

RESOLUTION
24-bit

SAMPLE RATE
48 / 96 kHz

INTERFACE
USB-C

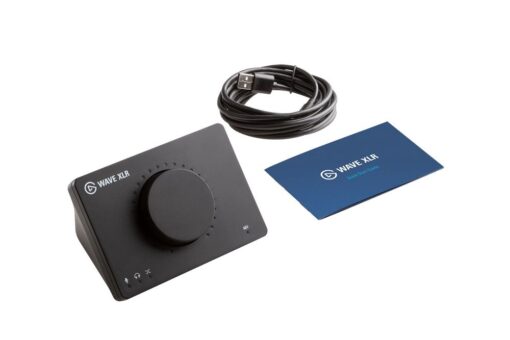

What’s in the box
1 x Wave XLR,
1 x USB-C Cable (250 cm / 98.4 in)
1 x Quick Start Guide
