MAC AFRIC 250 MM 4-Jaw Independent Chuck K72/250/D6
$512.87
Execution:

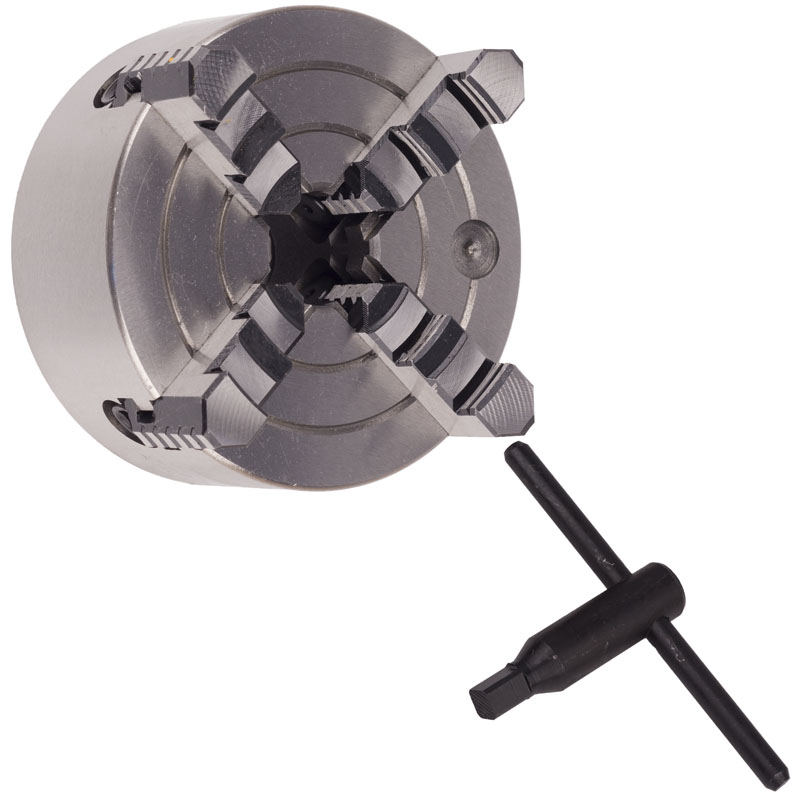

4-jaw independent chuck made out of cast iron
With Camlock- direct mount according to DIN 55029
Four separate adjustable jaws
Including milled T-slots from a diameter of 300 mm
Inclusive one set hard outside solid jaws
Application:
Useable for clamping of asymmetric and rectangular shaped workpieces on turning lathes
| Attribute Label | Value |
|---|---|
| Body Thickness (H1) | 90 MM |
| Bolt Circle Diameter (D2) | 133 MM |
| Chuck Diameter (D) | 250 MM |
| Handle Length | 200 MM |
| Package Height (cm) | 27.00 |
| Package Length (cm) | 31.00 |
| RPM | 2 000 RPM |
| Registration Recess Depth (h) | 0 |
| Registration Recess Diameter (D1) | 106 MM |
