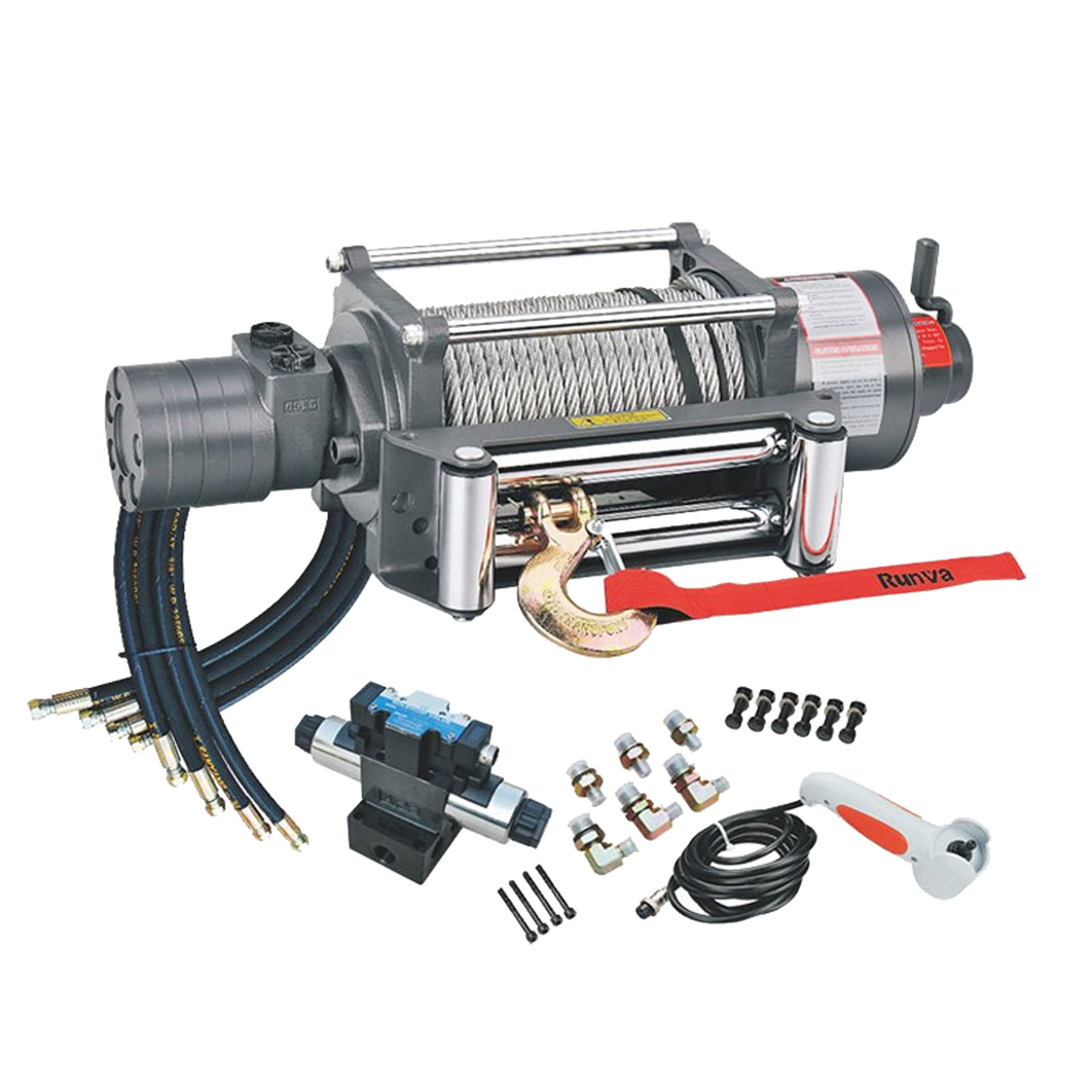

MAC AFRIC HWP12000A Hydraulic Winch
$1,302.00
The MAC AFRIC HWP12000A Hydraulic winch is reliability built into a heavy-duty case designed for trailers, towing, and utility vehicles. Built with robust internal parts including a free spooling clutch and a high-speed gear ratio making it the ideal value for quality hydraulic winch on the market.
| Attribute Label | Value |
|---|---|
| Cable Diameter | 10.2 MM (13/13″ IN) |
| Cable Length | 25.5 M (83.7″ IN) |
| Gear Reduction Ratio | Low Speed: 28:1 High Speed: 6:1 |
| Line Speed | Low: 0.6-5.3 High: 3.3-31.2 M/MIN |
| Motor Specifications | NA |
| Motor Type | Hydraulic |
| Mounting Bolt Pattern | 254 x 114.3 MM (10″ x 4.5″ IN);4-M10 |
| Mounting Dimensions | 25.4 x 11.4 MM |
| Package Height (cm) | 74.00 |
| Package Length (cm) | 31.00 |
| Pressure | 110 BAR (1595 PSI or 11 MPA) |
| Rated Line Pull | 5 443 KG (12 000 LBS) @ 4.9 M and 3 084 KG (6 800 LBS) @ 25.5 M |
| Specifications Description | #html-body [data-pb-style=GT54YGV]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll} Basic Winching: Top Tips
Access the situation from all angles before beginning to winch. Stop, slow down |
